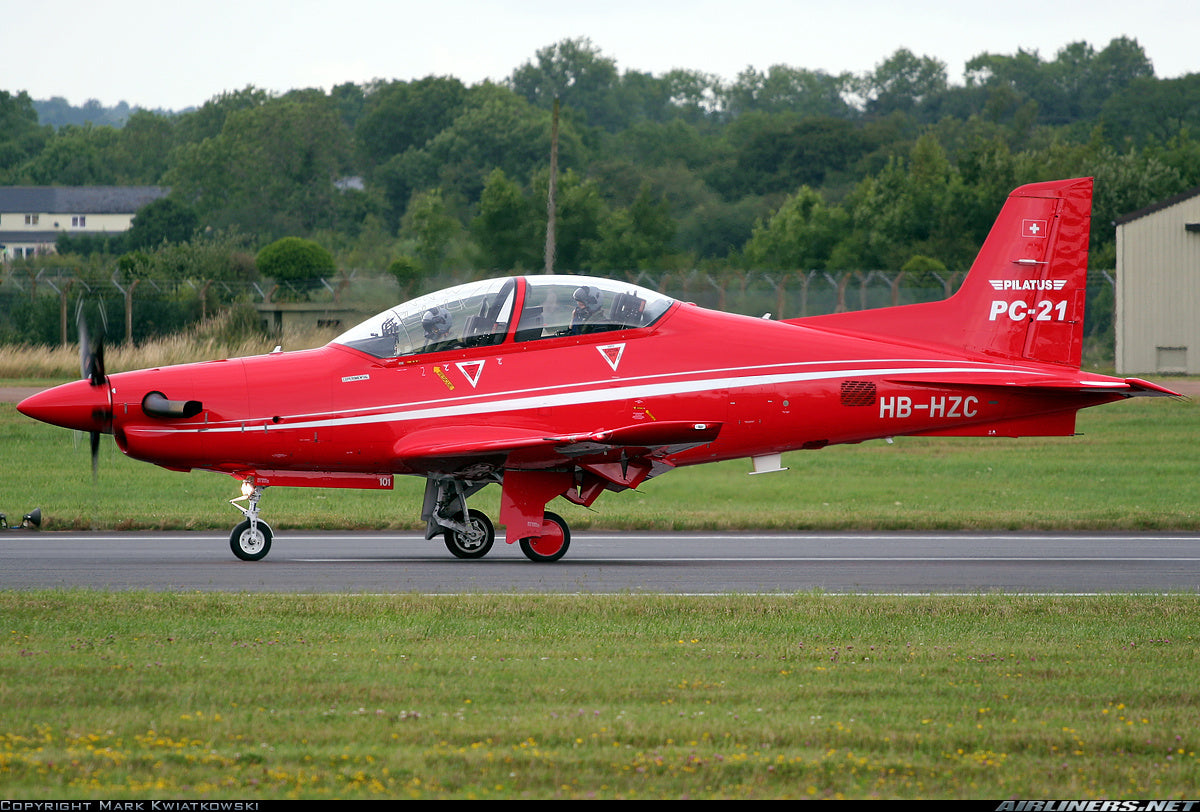

Photo Credit: airliners.net - Mark Kwiatkowski

Number 39 of 100 in 100, the Pilatus PC-21 ✈️

Conceptualization:



The Pilatus PC-21 emerged from the need for a more efficient military trainer to bridge the gap between basic flight training and the demands of modern fighter aircraft. In the late 1990s and early 2000s, air forces sought to reduce costs and streamline their training programs, which often required multiple aircraft for different phases. Pilatus saw an opportunity to develop a high-performance turboprop that simulated jet-like performance while remaining cost-effective. Advances in avionics and simulation technology enabled the PC-21 to offer versatile training capabilities across all phases, providing air forces with an optimized and efficient training platform that reduced overall pilot production costs.



Original Design:



The Pilatus PC-21 was designed to deliver jet-like performance at a fraction of the cost. Powered by a 1,600-horsepower Pratt & Whitney PT6A-68B engine, it reaches speeds up to 370 knots, with a swept-wing design for improved aerodynamics. Its glass cockpit, equipped with multifunction displays, HOTAS controls, and optional HUD, mirrors modern frontline fighter systems, allowing trainees to acclimate to advanced avionics early in their training. Additionally, the embedded training system (ETS) simulates radar operation, weapons training, and complex mission scenarios without external systems, significantly reducing training costs. With +8/-4 g limits and safety features like zero-zero ejection seats, the PC-21 offers a versatile platform for basic to advanced flight training.



Photo Credit: airliners.net - Stephen Fox



Principal Designer:



The Pilatus PC-21 was developed by Pilatus Aircraft’s engineering team, drawing on their expertise from the successful PC-7 and PC-9 trainers. The PC-21 builds on Pilatus’ decades of experience designing durable and versatile military trainers, incorporating modern avionics and flight systems to create a next-generation platform capable of preparing pilots for the complexities of fighter operations.



Production Run:



The Pilatus PC-21 began production in 2008, following its first flight in 2002 and successful certification trials. The aircraft remains in production today, with over 200 units delivered to air forces worldwide. Key early customers included the Swiss Air Force and the Republic of Singapore Air Force, which were among the first to receive PC-21s.

Production has continued steadily, with notable orders coming from countries like the United Arab Emirates, Australia, France, Saudi Arabia, and Spain. The United Arab Emirates ordered 25 PC-21s in 2009, and Australia procured 49 units in 2015 as part of its pilot training modernization program.

While production has remained stable, Pilatus has periodically expanded its manufacturing capacity to keep pace with growing demand. The aircraft's reputation for cost-effective performance and advanced training capabilities has kept it in high demand, with no announced plans to end production. Pilatus continues to deliver the PC-21 to new and existing customers, ensuring that it remains a key part of global military pilot training programs.

Photo Credit: airliners.net - Balazs Pinter



Evolution:



Since its launch, the PC-21 has undergone continuous upgrades, primarily in avionics and training systems. The cockpit now includes enhanced MFDs, HUD options, and advanced simulation capabilities, offering a more realistic training environment. The embedded training system (ETS) has improved with radar and weapons simulations, while flight control refinements ensure the aircraft can handle high-g maneuvers safely. Durability enhancements to the landing gear and airframe further ensure the PC-21's longevity in rigorous military training environments.



Specifications:



Pilatus PC-21 Specifications

General characteristics

  • Crew: 2
  • Length: 11.233 m (36 ft 10 in)
  • Wingspan: 9.108 m (29 ft 11 in)
  • Height: 3.74 m (12 ft 3 in)
  • Wing area: 15.221 m2 (163.84 sq ft)
  • Empty weight: 2,270 kg (5,004 lb)
  • Max takeoff weight: 3,100 kg (6,834 lb) aerobatic
4,250 kg (9,370 lb) normal
  • Powerplant: 1 × Pratt & Whitney Canada PT6A-68B turboprop engine, 1,200 kW (1,600 hp)
  • Propellers: 5-bladed constant-speed propeller, 2.39 m (7 ft 10 in) diameter

Performance

  • Maximum speed: 685 km/h (426 mph, 370 kn)
  • Stall speed: 170 km/h (110 mph, 92 kn) gear and flaps up (20 km/h (12 mph; 11 kn) less with flaps and gear down)
  • Range: 1,333 km (828 mi, 720 nmi)
  • Service ceiling: 11,580 m (37,990 ft)
  • g limits: +8.0 4.0 aerobatic / +5.0 to 2.5 utility
  • Rate of climb: 20.317 m/s (3,999.4 ft/min)
  • Wing loading: 208 kg/m2 (43 lb/sq ft)
  • Power/mass: 0.39 kW/kg (0.24 hp/lb)

Armament

  • Hardpoints: Provisions provided for 4× under-wing and 1× centerline external store stations, capable of mounting up to 1,150 kg (2,540 lb) of payload of air-to-ground weapons to operate in the counter-insurgency role.

    Comparison to Other Aircraft in its Class

    The Pilatus PC-21 is part of the advanced turboprop trainer aircraft class, primarily competing with aircraft such as the Beechcraft T-6 Texan II and the Embraer EMB 314 Super Tucano. Here's how it compares:

    Pilatus PC-21 vs Beechcraft T-6 Texan II:

    • Performance: The PC-21 outperforms the T-6 Texan II in terms of speed (PC-21’s 370 knots vs. the T-6’s 316 knots) and service ceiling (PC-21’s 38,000 ft vs. T-6’s 31,000 ft). The PC-21 also has a higher rate of climb.
    • Avionics: Both aircraft feature advanced glass cockpits, but the PC-21’s embedded training systems (ETS) provide more sophisticated simulation capabilities, making it more versatile for advanced pilot training.
    • Cost: The T-6 is typically less expensive to purchase and operate, but the PC-21 provides more capabilities for air forces looking to consolidate their training platforms into one aircraft.

    Pilatus PC-21 vs Embraer EMB 314 Super Tucano:

    • Speed and Agility: The PC-21 has a higher top speed (370 knots) than the Super Tucano (320 knots). However, the Super Tucano is combat-capable, with a heavier armament payload and more versatility in light attack roles.
    • Avionics: The PC-21 is focused purely on training, with high-end avionics and simulation systems designed for fighter pilot preparation. The Super Tucano, while also a capable trainer, is geared toward both training and light attack missions.
    • Combat Role: The Super Tucano is typically chosen by countries that need a dual-role trainer and light attack aircraft. The PC-21 focuses solely on pilot training and doesn’t have the same operational combat use, though it can carry weapons for training scenarios.
    • Operational Costs: The PC-21's costs are generally lower than the Super Tucano, which is outfitted with heavier weapon systems and combat capabilities.

    Summary of Strengths:

    • Performance: Higher speed, roll rate, and maneuverability compared to many turboprop trainers.
    • Avionics: Advanced avionics suite and training simulation systems provide a superior training environment, preparing pilots for next-generation fighters.
    • Operational Efficiency: The PC-21 is more cost-effective than jet trainers while providing near-jet performance.
    • Training Capabilities: Offers a comprehensive training solution, from basic to advanced mission profiles, allowing pilots to experience complex scenarios early in their training.

    Photo Credit: airliners.net - Pascal Gabriel



    Performance:



    Pilatus PC-21 Performance Envelope

    V-Speeds:

    • V_NE (Never Exceed Speed): 370 knots (685 km/h, 426 mph)
    • V_H (Maximum Speed in Level Flight): 370 knots (685 km/h)
    • V_A (Maneuvering Speed): 246 knots (456 km/h)
    • V_FE (Maximum Flap Extended Speed): 190 knots (352 km/h)
    • V_LE (Maximum Landing Gear Extended Speed): 180 knots (333 km/h)
    • V_S (Stall Speed, Clean Configuration): 170 km/h (92 knots)
    • V_REF (Approach Reference Speed): Typically around 110 knots, depending on weight.

    G-Load Limits:

    • Positive G-Limit: +8.0 g
    • Negative G-Limit: -4.0 g
    • These G-load limits make the PC-21 suitable for high-g maneuvering and aerobatics, providing trainees with an authentic fighter-like experience during training. The robust design ensures that the aircraft can withstand the stresses of repeated advanced maneuvers.



    Approved Maneuvers

    1. High-G Maneuvers: The PC-21 is rated for maneuvers up to 8 Gs.
    2. High-Speed Rolls: It features hydraulically assisted ailerons and spoilers, enabling fighter-like roll rates in excess of 200° per second.
    3. Low-Level Flight: The aircraft can sustain low-level speeds in excess of 320 knots (593 km/h).
    4. Aerobatic Maneuvers: The PC-21 is capable of performing various aerobatic maneuvers, including loops, rolls, and spins.

    Takeoff and Landing Performance:

    • Takeoff Distance (50-ft obstacle): 725 m (2,379 ft)
    • Landing Distance (50-ft obstacle): 770 m (2,526 ft)

    How the PC-21’s Performance Suits Its Training Role

    1. Jet-like Performance in a Turboprop: With a top speed of 370 knots, the PC-21 provides a performance envelope close to that of early-generation jet trainers. This speed, coupled with its high roll rate of 200° per second, gives students the opportunity to experience fighter-like agility without transitioning to more costly jet aircraft early in training. This makes it ideal for both basic and advanced stages of training, including formation flying, combat maneuvers, and tactical navigation.
    2. G-Limit and High-G Maneuvers: The +8/-4 g rating allows student pilots to safely practice high-g combat maneuvers and aerobatics, critical for fighter pilot training. The ability to perform these demanding maneuvers repeatedly without overstressing the airframe makes the PC-21 well-suited for the advanced phases of training, where students refine their combat flying skills.
    3. Aerobatic Training: The PC-21's approval for a wide variety of aerobatic maneuvers, including loops, rolls, and spins, ensures that trainees can develop their skills in a safe, controlled environment. The aircraft’s ability to recover from spins and handle aggressive aerobatics prepares pilots for the rigors of fighter jet flight, reducing the learning curve when they transition to operational jets.
    4. Efficient Low-Speed Handling: Despite its high-speed capabilities, the PC-21 maintains excellent low-speed handling, with a stall speed of 92 knots. This makes it versatile for teaching the fundamentals of flight, including stall recovery and precision landings, all of which are essential during the initial phases of pilot training.

    Suitability for Personal Aviation

    While the PC-21 is designed specifically for military training, its high performance, agility, and advanced avionics make it an appealing aircraft for highly skilled personal pilots interested in experiencing jet-like performance in a turboprop. Its versatility across both high-speed and low-speed flight regimes makes it capable for a range of personal flying adventures, including aerobatics and cross-country flying.

    However, due to its military-oriented design and embedded training systems, the PC-21 is more likely to be used by militaries and defense contractors than for personal civilian aviation. The maintenance and operating costs, as well as its specialized systems, make it less suitable for general aviation use compared to other turboprops like the PC-12.



    Safety Record:



    The Pilatus PC-21 has maintained a strong safety record, thanks to features like its zero-zero ejection seat and flight envelope protection, which safeguard pilots during high-performance training maneuvers. While incidents have occurred, these events are rare and typically involve pilot error rather than design flaws. Compared to other aircraft in its class, like the Beechcraft T-6 Texan II, which has faced more frequent hypoxia-related issues, the PC-21 is regarded as a safer, more reliable platform for advanced pilot training.



    Acquisition Cost:



    When the Pilatus PC-21 was first introduced in the mid-2000s, its acquisition cost was around $9 million per aircraft. This price included the aircraft’s advanced avionics, embedded training systems, and ground-based simulators, making it a highly attractive option for air forces looking to modernize their training programs without the high operational costs of jet trainers.

    The current cost of a Pilatus PC-21 ranges from $10 million to $12 million per aircraft, depending on the customization required by the purchasing air force. The increase in cost is consistent with adjustments for inflation and continuous upgrades to the aircraft’s systems, including avionics and training capabilities. Despite the higher price tag compared to its initial cost, the PC-21 remains an affordable solution for air forces, especially considering its ability to reduce overall training costs through embedded simulation and fuel-efficient operations.



    Conclusion:



    In conclusion, the Pilatus PC-21 represents a significant advancement in military pilot training, offering jet-like performance with the cost-efficiency of a turboprop. Its state-of-the-art avionics, embedded training systems, and versatile performance envelope make it an ideal solution for air forces seeking to streamline their training programs and prepare pilots for the complexities of modern fighter aircraft. With a strong safety record and ongoing demand from air forces worldwide, the PC-21 continues to set the benchmark for next-generation military trainers. Its combination of high-performance capabilities and operational efficiency has cemented its place as a key player in global pilot training, and its ongoing production ensures its relevance for years to come.

    Photo Credit: airliners.net - Thomas Urbild



    Bibliography:



    Pilatus Aircraft Official Website



    Aviation Safety Network



    Wikipedia – Pilatus PC-21



    Skybrary Aviation Safety
